GSK 920D-C CNC System Applies on Milling Groove Punching Machine of Wood Mechanical Company

Customer Requirement:

The milling groove and punching functions can be selected to control, which can be flexibly to process various projects.
It is provided a parameterized operation interface for the customer; user can select different machining types by the milling groove modules.
The grooving both left and right can be set different coordinate offset, which can be processed the arrays with different milling groove types or same one.
It can be led out or led in the milling groove configurations, which is convenient to backup or administrate the configurations for the customers.
To gain the buttons of current grooving offset parameters by one-touch click, and leave keying the parameters out.
It is built-in the whist-slot, arc-slot, full-round-slot, spline-slot and sub-program module function.
Lead-in the sub-program program, compatible with the lead-in program code, and perform the non-standard slot machining support.
To support the updated system by one-touch click, so that the operation of the renewed system will be more convenient.
It is supported with the machining file with Chinese name, which displays the numbers of the milling grooves of the configured files.
It is supported the cutter-broken verification function, and it is avoid from reprogramming after the tool-change.
It can be selected to stop based upon an appointment or circularly processing.

Troubleshooting:

A set of GSK920D-C CNC System .
The dedicated version V3.0 software of GSK 920D-C CNC System milling groove machine.
IO extension board with 2-circuit analogy value input or output, with the 16-input and 16-output terminals.
Standard 24V power cabinet.

Application Effect:

Configuration quantity of the system: one.

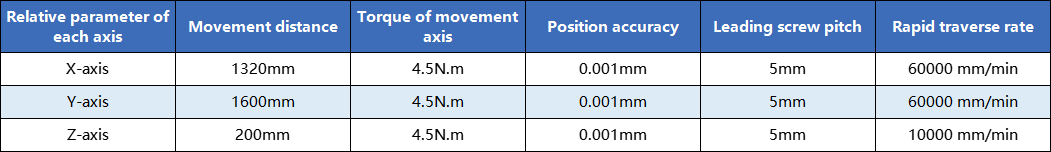

Technology parameter.
Three CNC axes are separately regarded as: X — Horizontal motion; Y — Vertical motion; Z — Deep feeding motion.

Punching the left or right slot is controlled by air cylinder, which can be set to punch by different times and solve the troubles of the wood chip-removal.
It can be achieved the configuration project that either the single milling groove without bunching or the milling with bunching only.
Override on-line adjustment, control the machining speed of the system randomly
It is supported the called machining file by subprogram and compatible with various “cam” software to produce the machining program format.
It is supported the self-defined configuration operational buttons (it provides to perform the G code), and it is more simple of operation steps.
Multiple milling groove types built-in; provide module extension.
It supports the leading-in or leading-out configuration and the function by one-touch renewal.
Punching project at both left and right slots (PLC program)
